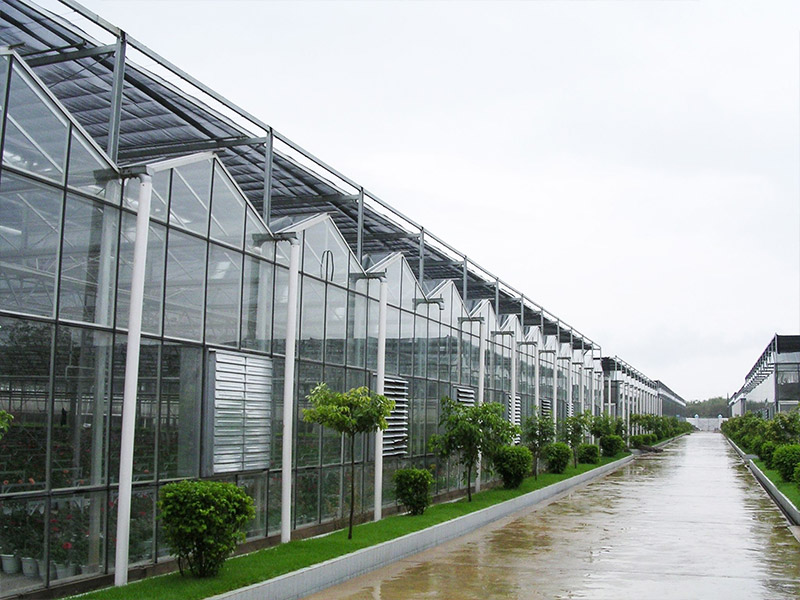

Greenhouse structure

Utilizes a hot-dip galvanized lightweight steel structure with an A-shaped ridge. Available in two-peak, three-peak, and four-peak configurations.

Technical Parameters

Covering Material: Top PC board or corrugated board, surrounding PC board or other coverings

Span: 6.4m/8.0m/9.6m/10.8m/12m/12.8m/16.0m

Eaves Height: 3.0m-8.0m

Column Spacing: 4.0m/8.0m

Top Windows: Staggered ridge windows, single-side windows, or full-length windows

Side Windows: Rack-type tilting windows, sliding windows, and electric vertical sliding windows

Supporting Facilities: Optional equipment tailored to greenhouse needs

Characteristics of the greenhouse: A multi-span structure with multiple peaked roofs, the greenhouse features small roofs, multiple gutters, and large spans, allowing for flexible internal partitioning; it has good lighting performance, with even indoor illumination; it has strong drainage capabilities and can be connected in large areas. The profiles are made of aluminum alloy or specially designed sealing components, giving an attractive appearance; it has anti-drip and fogging functions, with fog water collection troughs set below the gutters to collect condensation and direct it to the end of the greenhouse for discharge, reducing the occurrence of pests and diseases. Its insulation and energy-saving effects are better than those of single-layer glass, saving a large amount of fuel in winter, though its light transmission is comparatively worse than that of single-layer glass. The interior is spacious and bright, providing ample operational space, making the greenhouse highly efficient.
